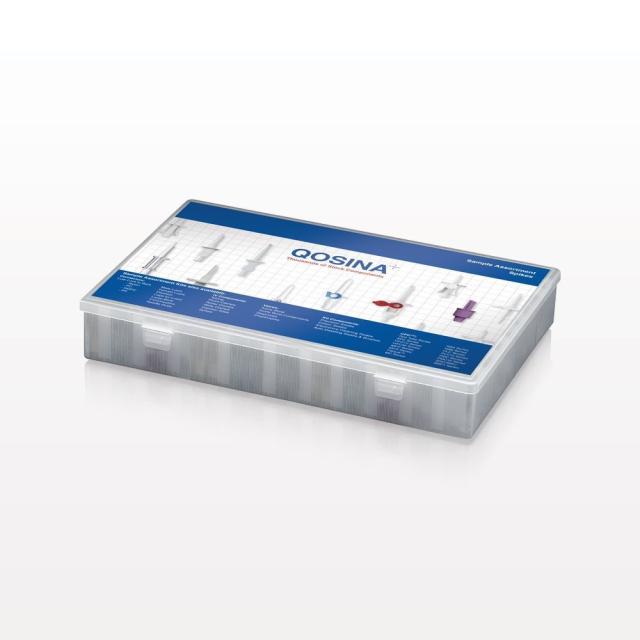

Spike Sample Kit
Please log in or register to view pricing, download product documentation and CAD models.
See below for details on kit contents and quantities.
Alternative items may be substituted depending on availability.
Alternative items may be substituted depending on availability.
The products in our inventory are intended solely for use as components for further manufacturing, processing or incorporation into a finished device. These products are not intended for use as finished devices. Customers are solely responsible for determining whether a Qosina component product is appropriate for customer’s intended use and for ensuring that the use of the component product is in compliance with applicable laws. Our components are not available for sale to hospitals, physicians, and pharmacists.

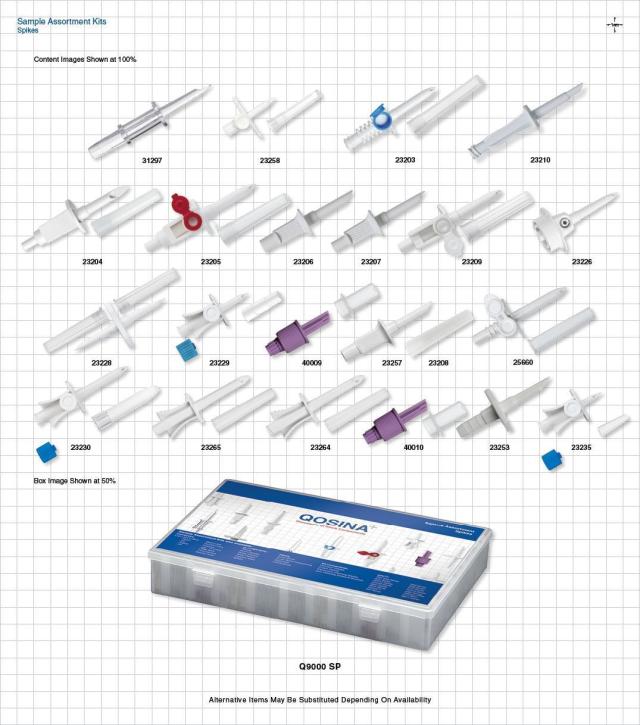

What's included:
| Number | Name | Measurements | Materials | Quantity (Unit) |
|---|---|---|---|---|
| 11656 | Spike, Non-Vented | 0.15 inch - 0.169 inch ID/0.28 inch OD (3.8 mm - 4.3 mm/7.1 mm) | Nylon | 4 |
| 40094 | ENPlus Cross Spike, Non-Vented with Vented Cap | Fits 0.157 inch OD Tubing (4 mm) | EPE ABS Colorant ABS Colorant LDPE | 4 |
| 65429 | Spike, Non-Vented, Male Luer Slip | Polyamide Colorant | 4 | |
| 23280 | Spike, Non-Vented | 0.098 inch - 0.169 inch ID / 0.22 inch OD (2.5 mm - 4.3 mm / 5.6 mm) | ABS | 4 |
| 23279 | Spike, Non-Vented | 0.153 inch ID / 0.217 inch OD (3.9 mm / 5.5 mm) | ABS | 4 |
| 23267 | Spike, Non-Vented, Vented Hydrophobic Cap, Female Luer Slip | LDPE ABS Adhesive Paper PE | 4 | |
| 23203 | Spike, Vented with Vented Cap, Female Luer Lock | PVDF PP Colorant ABS LLDPE | 4 | |
| Spike, Non-Vented, with Vented Cap | Fits 0.189 inch ID x 0.268 inch OD Tubing (4.8 mm x 6.8 mm) | LDPE ABS | 4 | |
| Spike, Vented with Vented Cap | 0.161 inch ID/0.189 inch OD (4.1 mm ID/4.8 mm OD) | 4 | ||
| 23206 | Spike, Non-Vented | 0.185 inch ID/0.315 inch OD (4.7 mm ID/8 mm OD) | ABS | 4 |
| 23207 | Spike, Non-Vented | 0.157 inch ID/0.256 inch OD (4 mm/6.5 mm) | ABS | 4 |
| Vented Spike Cap, Natural | Fits 23206, 23207 and 23257 | LDPE | 4 | |
| Spike, Vented with Vented Cap | 0.209 inch OD (5.3 mm) | LDPE PVDF ABS HDPE | 4 | |
| 23210 | Spike, Female Luer Lock | ABS | 4 | |
| 23226 | Spike, Vented | 0.645 inch Diameter (16.4 mm); 20 Drops/ml | ABS | 4 |
| 23228 | Discontinued Double Ended Transfer Spike with Vented Caps | ABS | 4 | |
| 23229 | Discontinued Suregrip™ Vented Mini Transfer Spike with Female Luer Lock, Caps Included | LLDPE Colorant ABS Colorant Proprietary | 4 | |
| 23230 | Discontinued Suregrip™ Vented Transfer Spike with Female Luer Lock, Caps Included | LLDPE Colorant ABS Colorant Proprietary | 4 | |
| 23235 | Discontinued Suregrip™ Vented Mini-Mini Transfer Spike with Female Luer Lock, Caps Included | LLDPE Colorant ABS Colorant Proprietary | 4 | |
| 23253 | Spike, Non-Vented, Barb Connector | Fits 1/4 inch ID Tubing (0.25 inch, 6.35 mm) | ABS | 4 |
| 23257 | Spike, Non-Vented | 0.205 inch ID/0.315 inch OD (5.2 mm/8 mm) | ABS | 4 |
| Mini Transfer Spike, Vented with Non-Vented Cap, Female Luer Lock | LDPE Acrylic/Nylon ABS PP | 4 | ||
| Spike, Non-Vented, with Vented Cap, Female Luer Lock | LDPE ABS | 4 | ||
| Spike, Non-Vented, with Vented Cap | 0.159 inch ID (4.04 mm) | 4 | ||
| 25660 | Spike, Vented, with Vented Cap | 0.15 inch - 0.157 inch ID/0.217 inch OD (3.8 mm - 4 mm/5.5 mm) | LDPE Acrylic/Nylon ABS LLDPE | 4 |
| 31297 | Spike, Non-Vented, Barb Connector | Fits 1/4 inch ID Tubing (0.25 inch, 6.35 mm) | PC | 4 |
| 40009 | Discontinued ENPlus Cross Spike, Non-Vented with Vented Cap | Fits 0.161 inch OD Tubing (4.1 mm) | LDPE PE EVA ABS Colorant | 4 |
| 40010 | Discontinued ENPlus Cross Spike, Non-Vented with Vented Cap | Fits 0.212 inch OD Tubing (5.4 mm) | LDPE PE EVA ABS Colorant | 4 |
