Qosina High-Flow Check Valves - Unique Solutions for Liquid or Gas
Qosina offers a new range of high-flow check valves, tested in accordance with ISO 8536 standards, part 12 (section 6): check valves for single use.
Features:
- Low cracking pressures

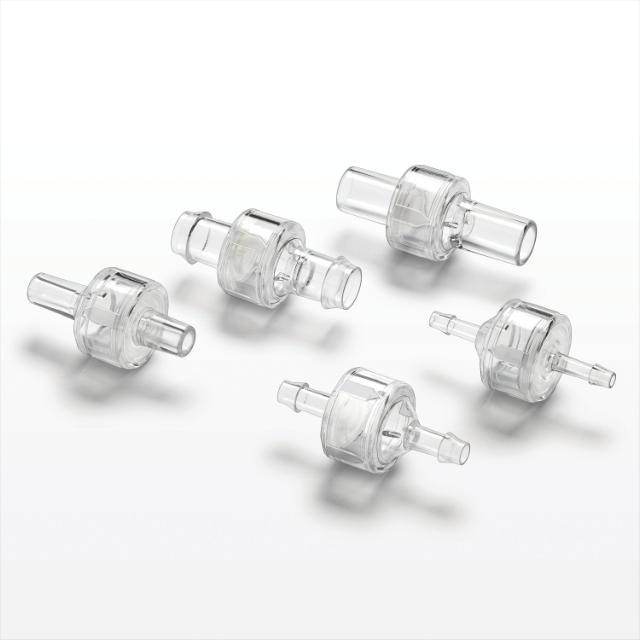

- Clear acrylic housing and silicone valve membrane
- Available in both barbed and tubing port connection options
- Opening pressure as low as 0.29 psi
- Maximum back pressure >= 50 psi
- Maximum working pressure -> 43 psi
- Method of sterilization: Gamma radiation, and E-beam compatible
- Regulatory ready with BPA-free, conflict mineral-free, not made from natural rubber latex, Animal Derived Component Free (ADCF), EU MDR 10.4.1 Statement REACHand RoHS compliant
- Material meets USP <88>Modular design enables quick customization - different body styles, connections (luer, tubing port, barbed) and housing materials such as PC, MBS and acrylic.
Did you know?
These new check valves provide modularity in manufacturing, which enables the production of variations on the above body styles based on your needs (such as tubing port, hose barb, and luer connection options for inlet and outlet ports). Please reach out to the Qosina Europe office to discuss your custom sourcing requirements.
- A check valve is a mechanical device (valve) that normally allows liquid or gas to flow through it only in one direction, preventing backflow in the system.
- High-flow valves feature low flow resistance, low opening pressure and a positive seal against backflow. Designed for flushing and irrigating applications, high-flow check valves afford quick flow response for more control and ability to remove air bubbles during priming.
- The valves’ capacity to increase flow with a less restrictive path is more and more appreciated in many medical and pharmaceutical areas of applications, in addition to the above-mentioned facts.
