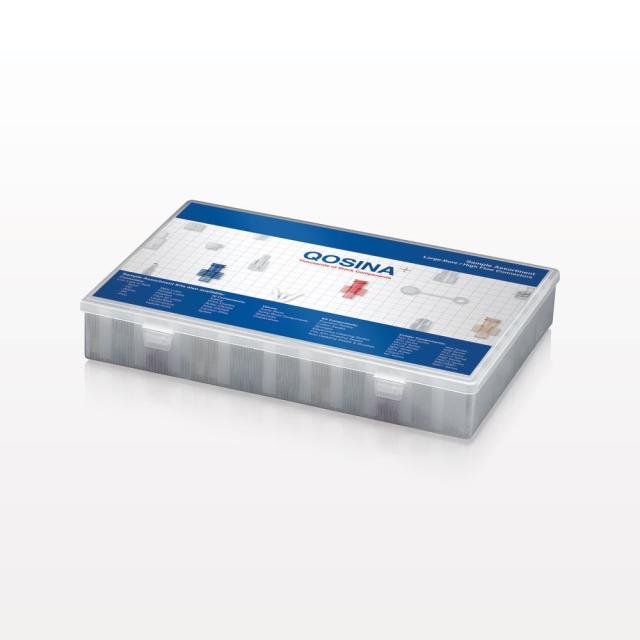

Large Bore/High-Flow Connectors Sample Kit
Please log in or register to view pricing, download product documentation and CAD models.
See below for details on kit contents and quantities.
Alternative items may be substituted depending on availability.
Alternative items may be substituted depending on availability.
The products in our inventory are intended solely for use as components for further manufacturing, processing or incorporation into a finished device. These products are not intended for use as finished devices. Customers are solely responsible for determining whether a Qosina component product is appropriate for customer’s intended use and for ensuring that the use of the component product is in compliance with applicable laws. Our components are not available for sale to hospitals, physicians, and pharmacists.

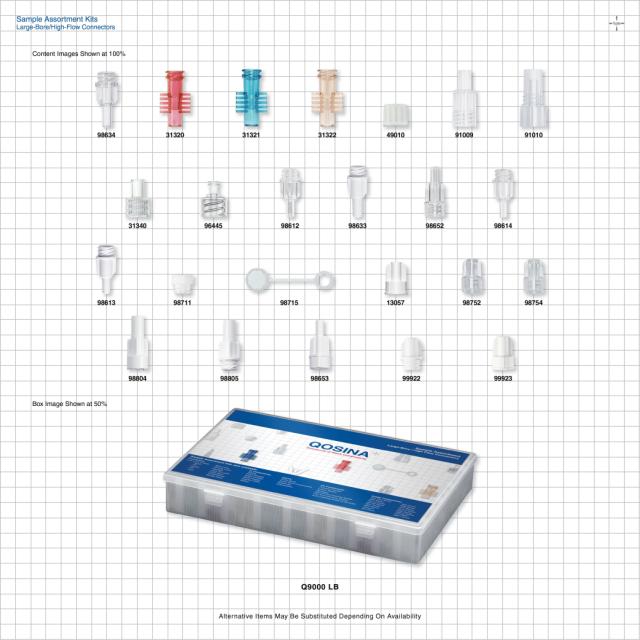

What's included:
| Number | Name | Measurements | Materials | Quantity (Unit) |
|---|---|---|---|---|
| 13057 | Large-Bore Male Cap, Non-Vented, White | ABS | 6 | |
| 31340 | Discontinued Connector, High-Flow Male | 0.27 inch ID x 0.35 inch OD (6.8 mm x 9 mm) | PVC PVC | 15 |
| Large-Bore Male Connector, Natural | 0.26 inch - 0.252 inch ID x 0.354 inch - 0.339 inch OD (6.8 mm - 6.5 mm x 9 mm) | 8 | ||
| 98612 | Large-Bore Female Connector, Clear | 0.204 inch OD (5.2 mm); 0.146 inch Thru Hole (3.7 mm) | PC | 10 |
| 98613 | Large-Bore Female Connector, White | 0.204 inch OD (5.2 mm); 0.146 inch Thru Hole (3.7 mm) | ABS | 8 |
| 98614 | Large Bore Female Connector, Clear | 0.204 inch OD (5.2 mm); 0.146 inch Thru Hole (3.7 mm) | MABS | 6 |
| 98633 | Large Bore Female Connector, High Quality , White | 0.236 inch OD (6 mm); 0.181 inch Thru Hole (4.6 mm) | ABS | 10 |
| 98652 | Large Bore Male Connector, Clear | 0.208 inch OD (5.3 mm) OD; 0.146 inch Thru Hole (3.7 mm) | PC | 10 |
| 98653 | Large Bore Male Connector, White | 0.208 inch OD (5.3 mm) OD; 0.146 inch Thru Hole (3.7 mm) | ABS | 10 |
| 98663 | Large-Bore Male Connector, White | 0.236 inch OD (6 mm); 0.181 inch Thru Hole (4.6 mm) | ABS | 8 |
| 98711 | Large-Bore Female Cap, Vented, Natural | HDPE | 12 | |
| 98715 | Large Bore Male Cap, Vented w/Strap, White | LDPE | 10 | |
| 98754 | Large-Bore Male Cap, Non-Vented, Clear | MABS | 10 | |
| 98804 | Large-Bore Male Connector, White | 0.315 inch OD (8 mm); 0.197 inch Thru Hole (5 mm) | ABS | 6 |
| 98805 | Large-Bore Female Connector, White | 0.315 inch OD (8 mm); 0.236 inch Thru Hole (6 mm) | ABS | 6 |
| 13056 | Large-Bore Female Cap, Non-Vented, White | ABS | 5 | |
| 21064 | Female Vented Cap | Fits 0.268 inch (6.8 mm) Male Connector, White | PVC Colorant | 10 |
| 91000 | Large-Bore Female Connector, Clear | Fits 0.268 inch OD Tubing (6.8 mm) | PVC | 8 |
| 98664 | Large Bore Male Connector, Clear | 0.236 inch OD (6 mm); 0.181 inch Thru Hole (4.6 mm) | MABS | 8 |
| 98712 | Large-Bore Female Cap, Non-Vented, Clear | PC | 8 | |
| 98713 | Large-Bore Female Cap, Non-Vented, White | ABS | 10 | |
| 98753 | Large-Bore Male Cap, Non-Vented, White | ABS | 10 | |
| 99922 | Discontinued Large Bore Female Cap, Non-Vented, White | ABS | 10 | |
| 99923 | Large Bore Male Cap, Non-Vented, White | ABS | 10 |
